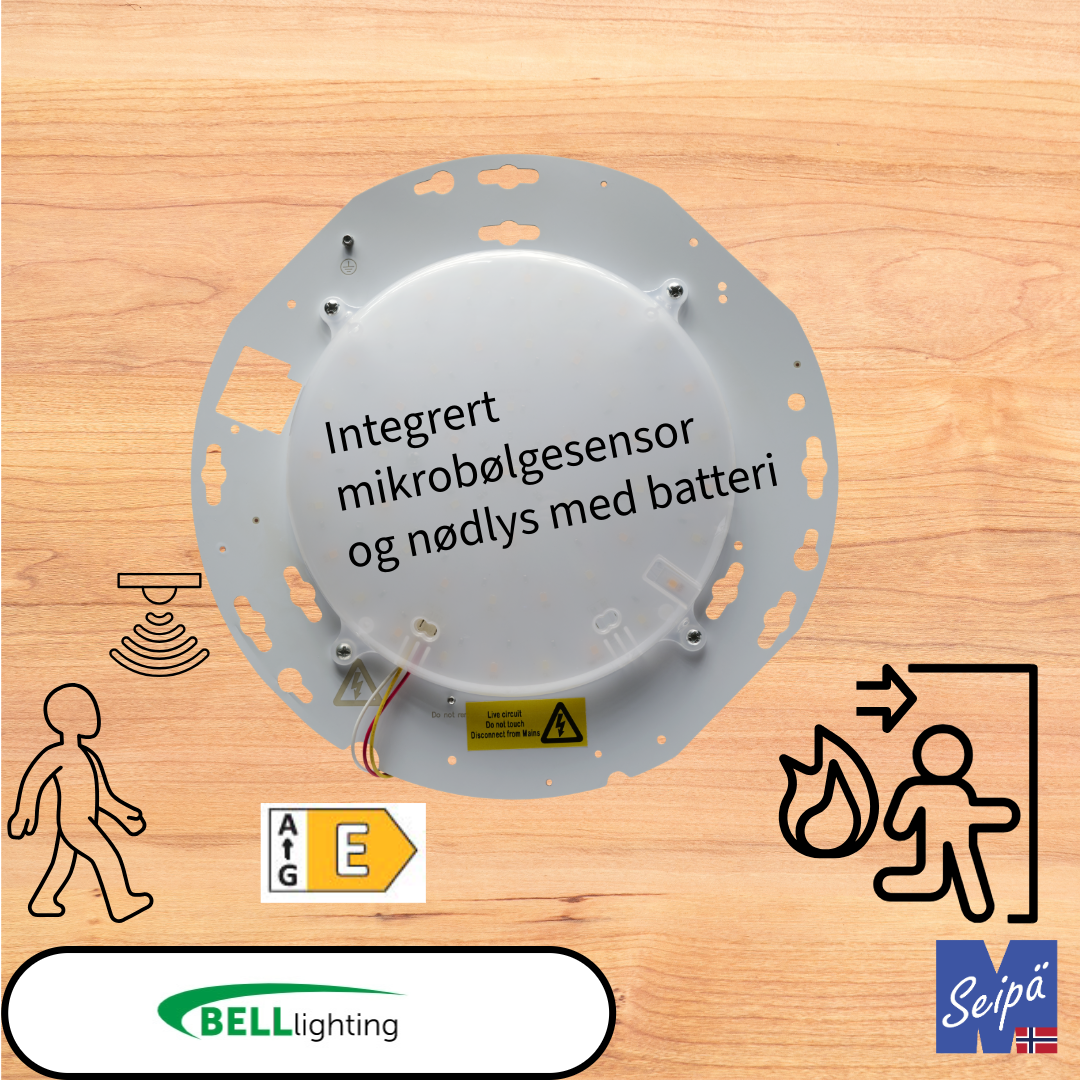

BELL GEAR TRAY LED-innmat med sensor og nødlys for skottmontering, taklampe, 9W/14W/18W PÅ/AV Artikkelnr. 11609 ELNR 3773213

Clever solution for reusing old outdoor bulkhead or indoor ceiling luminaire; complete light module with LED, integrated motion sensor (microwave) and integrated LED driver; A) Electrician removes existing "internals"; compact fluorescent lamps, lamp holders, ballast or electronic control gear, B) Electrician installs this module, selects light output in three steps, selects light colour in three steps, Done!

Specific variants are available with integrated emergency light (smart for fuse boxes) Art no 11607, without motion sensor Art no 11606, and finally the combination of emergency light and sensor, Art no 11609.

Product advantages and features

• low profile, format: H: 50 x D: Ø246 mm
• Integrated emergency light turns on the light in case of power failure
• Integrated microwave sensor turns on and off based on movement, but only when it is dark. If there is sufficient daylight, the LED remains off.
• Sensitivity/detection area can be set in 4 steps; 100% / 75% / 50% / 25%
• Hold time/timer can be set in 6 steps; 5sec / 30sec / 90sec / 5min / 20min / 30min
• Lux / daylight level can be set in 4 steps, and can be turned off for rooms without daylight; 2lux / 10lux / 30lux / 50 lux / «disable» (off)
• Sensor can be overridden if frequent switching on and off is not desired, for example during social gatherings; switch on and off within 2sec 3 times to disable the sensor.
• Upon installation, the light will turn on to 100% and after 10 seconds the light will turn off. During installation, the sensor will not detect movement.
• Factory setting on sensor; 100% sensitivity, 5sec hold time, Daylight sensor disabled (disable).
• Base in pressed steel and shade in opal (white) plastic
• For both outdoor and indoor use
• LED from Samsung 9W/14W/18W with 3000K/4000K/6000K light colour provides up to 2200 lm
• Weighted energy consumption [kWh/1000h] 18
• Light output [lm] 1200 lumens / 1800 lumens / 2200 lumens depending on choice of power and light colour
• Light intensity [cd] 490 – 910 candela depending on choice of power and light colour
• Luminous efficacy [lm/W] 122 – 133
• Colour rendering [CRI / Ra] 85
• Beam angle 116°
• LED Driver constant current [mA] 130
• Replaces compact fluorescent lamps and 2D 16W / 28W / 32W
• Operating voltage 220-240 V
• Power factor > 0.91
• Ambient temperature -30°C to +30°C
• Type approval CE & UKCA
• 3 year warranty from BELL
