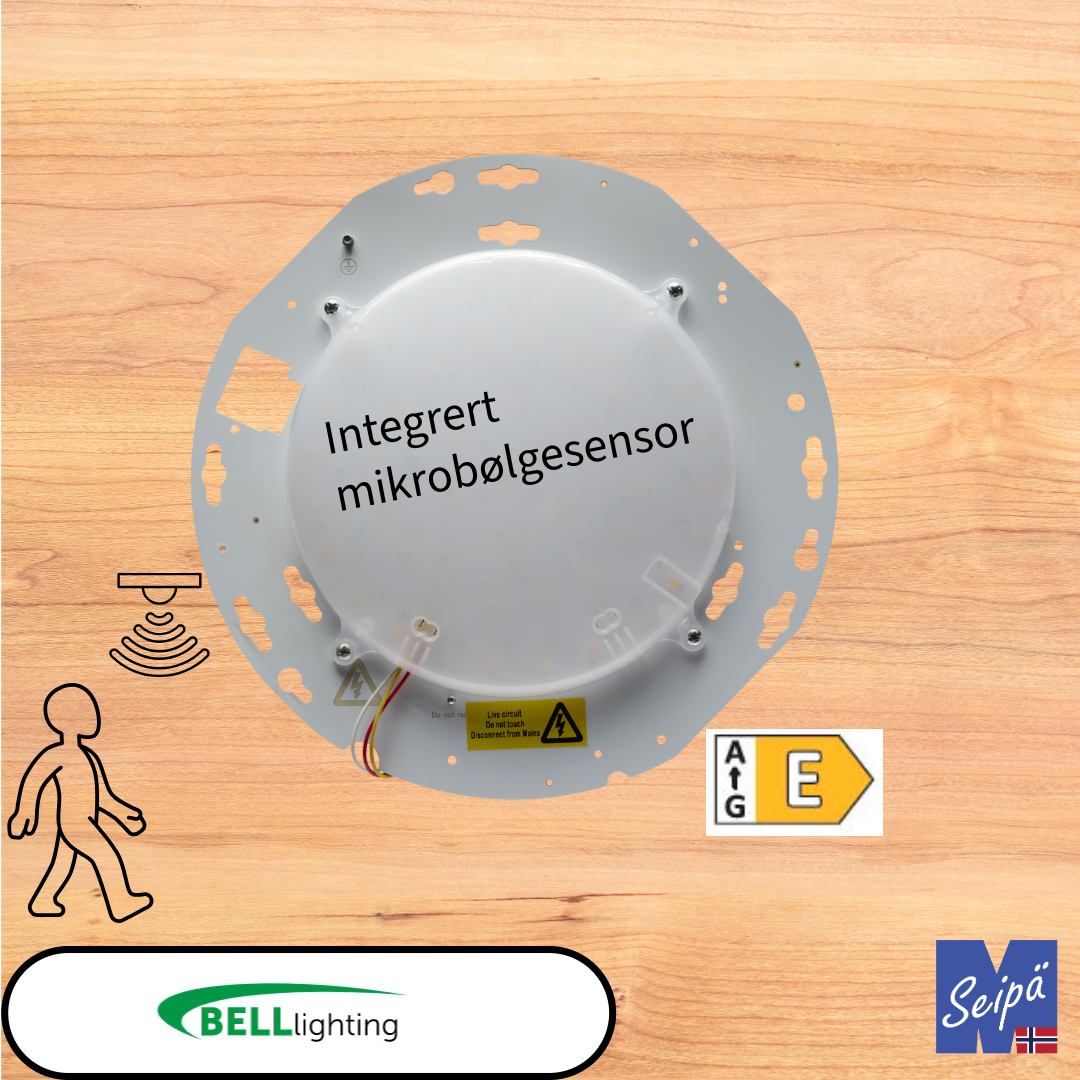

BELL GEAR TRAY LED-innmat med sensor for Bulkhead, plafond, 9W/14W/18W PÅ/AV Art.nr 11608 EL.NR 3773212

Smart solution for reusing old outdoor Bulkhead or indoor ceiling plafond; complete light module with LED, integrated motion sensor (microwave), and integrated LED Driver; A) Electrician removes existing "internals"; compact fluorescent lamps, fluorescent lamp holders, ballast or electronic ballast, B) Electrician inserts this module, selects light output in three steps, selects light color in three steps, Done!

Separate variants are available with integrated emergency light (smart for fuse boxes) Art no 11607, without motion sensor Art no 11606, and finally the combination of emergency light and sensor, Art no 11609.

Product benefits and features

• low profile, format: H: 50 x D: Ø246 mm
• Integrated microwave sensor switches on and off based on movement, but only when it is dark. If there is sufficient daylight, the LED remains off.
• Sensitivity/detection range can be set in 4 steps; 100% / 75% / 50% / 25%
• Hold time/timer can be set in 6 steps; 5sec / 30sec / 90sec / 5min / 20min / 30min
• Lux / daylight level can be set in 4 steps, and can be switched off for rooms without daylight; 2lux / 10lux / 30lux / 50 lux / «disable» (off)
• Sensor can be overridden if frequent switching on and off is not desired, for example at social gatherings; switch on-and-off within 2sec 3 times to disable sensor.
• Upon installation, the light will turn on to 100% and after 10 seconds the light will turn off. During installation, the sensor will not detect movement.
• Factory setting on sensor; 100% sensitivity, 5sec hold time, Daylight sensor disabled.
• Base in pressed steel and diffuser in opal (white) plastic
• For both outdoor and indoor use
• LED from Samsung 9W/14W/18W with 3000K/4000K/6000K light color provides up to 2200 lm
• Replaces compact fluorescent lamps and 2D 16W / 28W / 32W
• Operating voltage 220-240 V
• Power factor > 0.9
• Ambient temperature -30°C to +30°C
• Type approval CE & UKCA
• 3-year warranty from BELL
• Energy efficiency class E - final result depends on the actual luminaire
