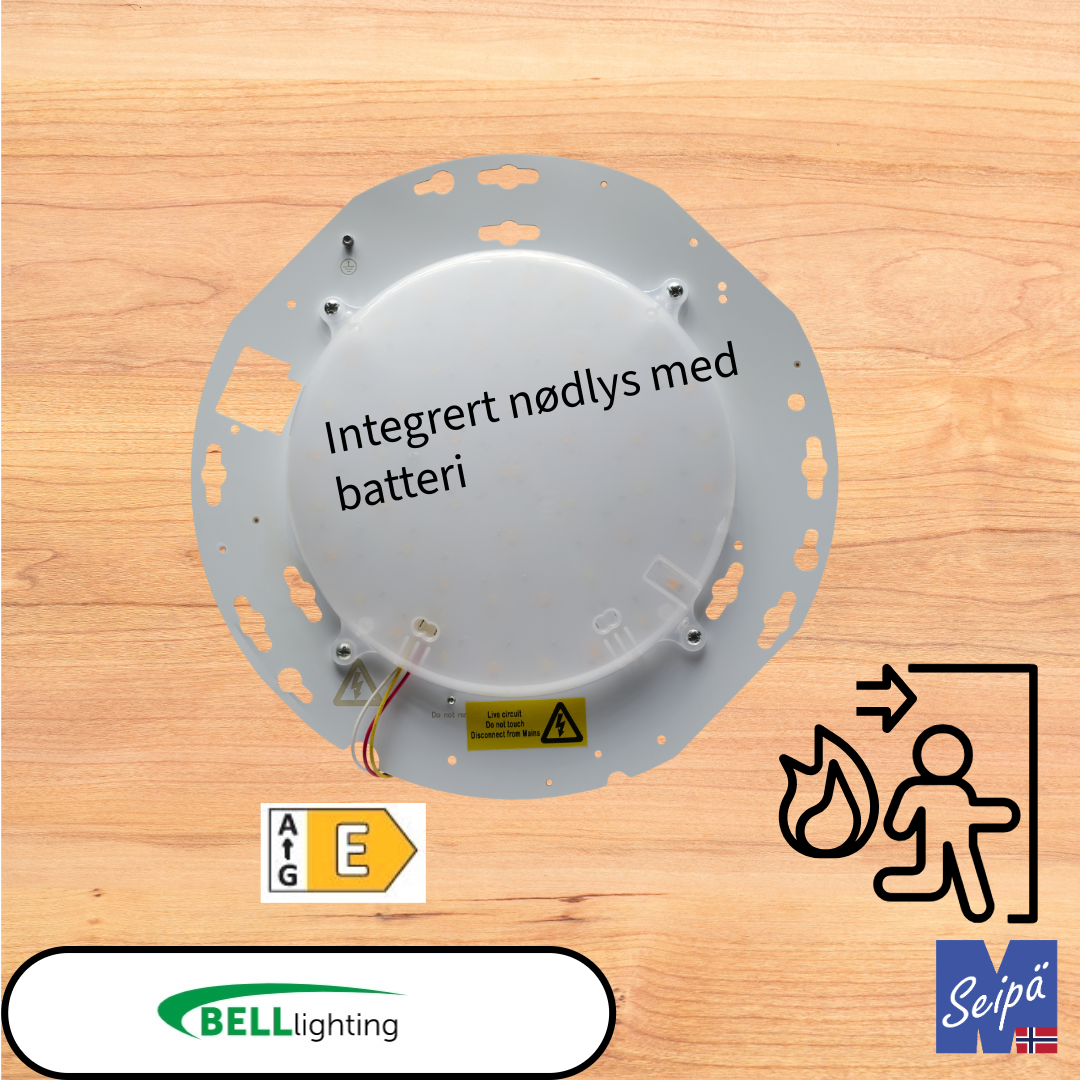

BELL GEAR TRAY LED-innmat med nødbelysning for skott, taklampe, 9W/14W/18W PÅ/AV Art.nr. 11607 ELNR 3773211

Clever solution for reusing old outdoor Bulkhead or indoor ceiling light; complete light module with LED, integrated motion sensor (microwave) and integrated LED driver; A) Electrician removes existing "internals"; compact fluorescent lamps, fluorescent tube holders, ballast or electronic ballast, B) Electrician installs this module, selects light output in three steps, selects light color in three steps, Done!

Separate variants are available with integrated emergency light (smart for fuse boxes) Art no 11607, without motion sensor Art no 11606, and finally the combination of emergency light and sensor, Art no 11609.

Product advantages and features

• low profile, format: H: 50 x D: Ø246 mm
• Integrated emergency light turns on the light in case of power failure
• Base in pressed steel and shade in opal (white) plastic
• For both outdoor and indoor use
• LED from Samsung 9W/14W/18W with 3000K/4000K/6000K light color provides up to 2200 lm
• Weighted energy consumption [kWh/1000h] 18
• Light output [lm] 1200 lumens / 1800 lumens / 2200 lumens depending on choice of power and light color
• Light intensity [cd] 490 – 910 candela depending on choice of power and light color
• Luminous efficacy [lm/W] 122 – 133
• Color rendering [CRI / Ra] 85
• Beam angle 116°
• LED driver constant current [mA] 130
• Replaces compact fluorescent lamps and 2D 16W / 28W / 32W
• Operating voltage 220-240 V
• Power factor > 0.91
• Ambient temperature -30°C to +30°C
• Type approval CE & UKCA
• 3 year warranty from BELL
